Escalator and Moving Walks Asthetics

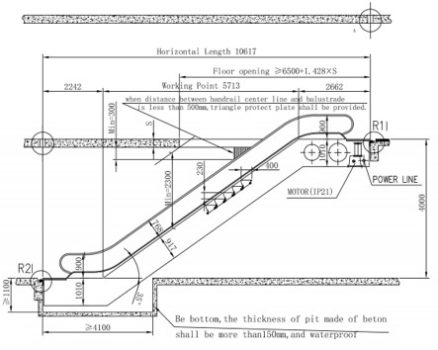

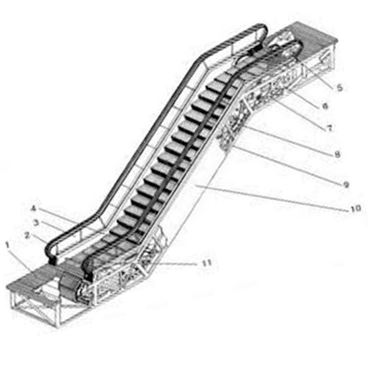

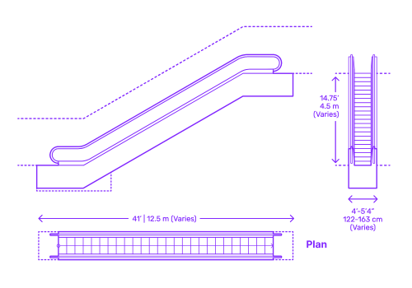

30° Escalator Construction Layout								35° Escalator Construction Layout
Step Width (mm)	Handrail Spacing	Trush Width	Escallator Width	Width of installation Civil opening		Safe civil Engineering Width		Step Width (mm)	Handrail Spacing	Trush Width	Escallator Width	Width of installation Civil opening		Safe civil Engineering Width
1000	1238	1560	1600	1660		2317		1000	1238	1560	1600	1660		2317
800	1037	1360	1400	1460		2137		800	1037	1360	1400	1460		2137
600	837	1160	1200	1260		1937		600	837	1160	1200	1260		1937

Model	Elevate height mm	Weight	Support Load	Support Load 2	Power	Transport Size		Model	Elevate height mm	Weight	Support Load	Support Load 2	Power	Transport Size
Model	Elevate height mm	Weight	Support Load	Support Load 2	Power	H	L	Model	Elevate height mm	Weight	Support Load	Support Load 2	Power	H	L
OP-600, 3600P/H, Speed 0.5	3000	57	46	41	5.5	2850	10180	OP-600, 3600P/H, Speed 0.5	3000	55	43	39	5.5	2850	10180
	3500	60	49	44		2890	11030		3500	57	46	41		2890	11030
	4000	64	52	47		2920	11890		4000	60	49	44		2920	11890
	4500	68	56	50		2940	12750		4500	64	52	46		2940	12750
	5000	71	59	53		2970	13610		5000	67	54	49		2970	13610
	5500	75	62	56		2980	14470		5500	70	57	51		2980	14470
	6000	79	65	59	8	3000	15330		6000	73	60	54	8	3000	15330

OP-800, 4800P/H, Speed 0.5	3000	59	52	47	5.5	2850	10180	OP-800, 4800P/H, Speed 0.5	3000	56	69	44	5.5	2850	10180
	3500	63	56	50		2890	11030		3500	60	52	47		2890	11030
	4000	67	60	54		2920	11890		4000	63	56	50		2920	11890
	4500	71	64	57		2940	12750		4500	66	59	53	8	2940	12750
	5000	74	68	60		2970	13610		5000	70	62	56		2970	13610
	5500	82	74	66		2980	14470		5500	73	65	59		2980	14470
	6000	86	78	69	8	3000	15330		6000	76	69	61		3000	15330

OP-1000, 6000 0P/H, Speed 0.5	3000	63	59	53	5.5	2850	10180	OP-1000, 6000 0P/H, Speed 0.5	3000	60	56	50	5.5	2850	10180
	3500	67	64	57	8	2890	11030		3500	64	60	53	8	2890	11030
	4000	71	68	61		2920	11890		4000	67	64	57		2920	11890
	4500	75	73	65		2940	12750		4500	71	67	60		2940	12750
	5000	83	79	71		2970	13610		5000	74	71	64		2970	13610
	5500	87	84	75		2980	14470		5500	82	77	69		2980	14470
	6000	92	88	79	11	3000	15330		6000	85	81	72	11	3000	15330
